HIKMICRO Mini thermal imaging module for Android mobile
The high-performance Armytek Prime A2 Pro v3 XP-L flashlight is made of highly durable aircraft aluminum and its design is particularly suitable for professionals from the police, firefighters, rescue workers, but also for hiking, fishing or hunting.
The luminous flux is 790 LED lumens (651 lm OTF) and the range is up to 139 meters.
.jpg)

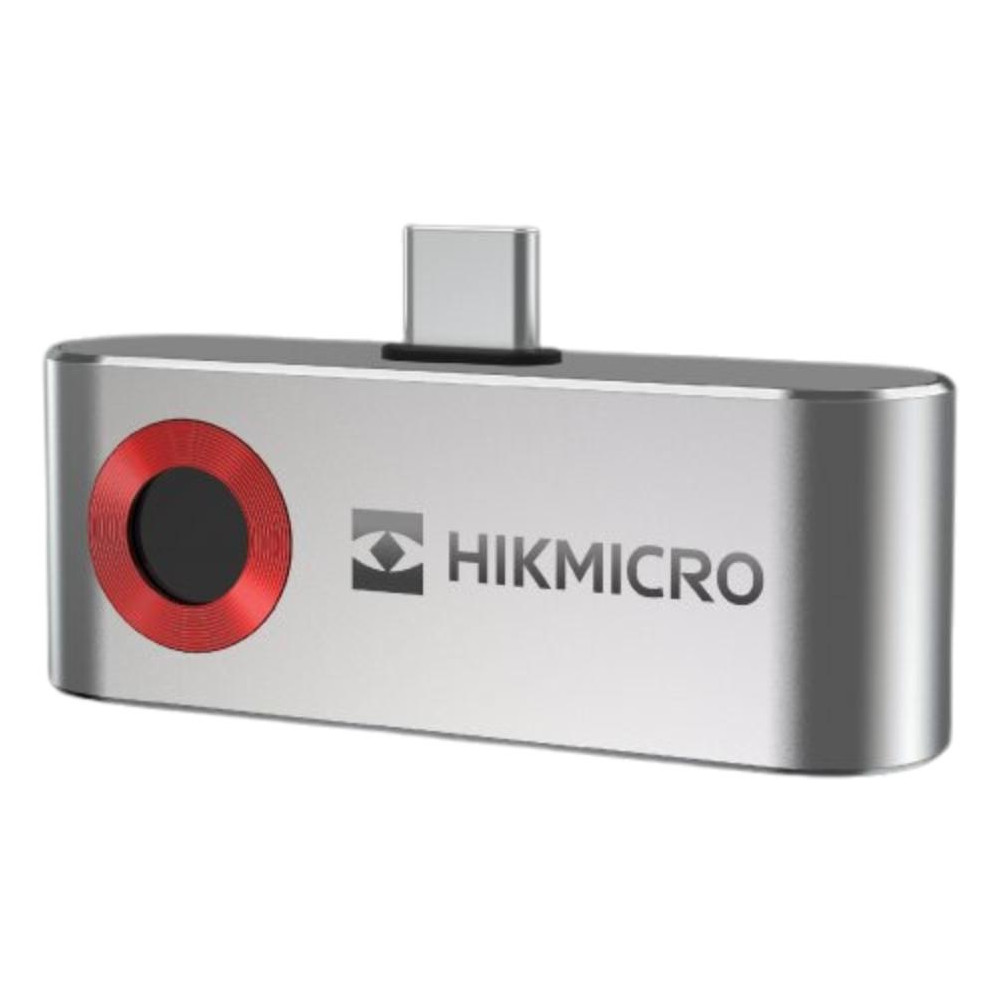

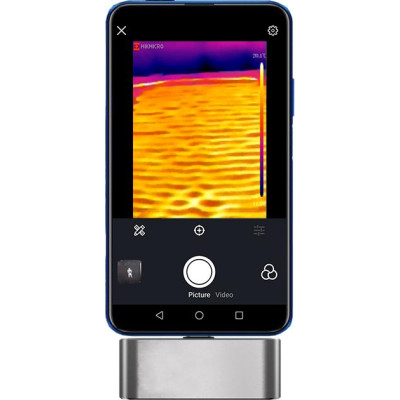

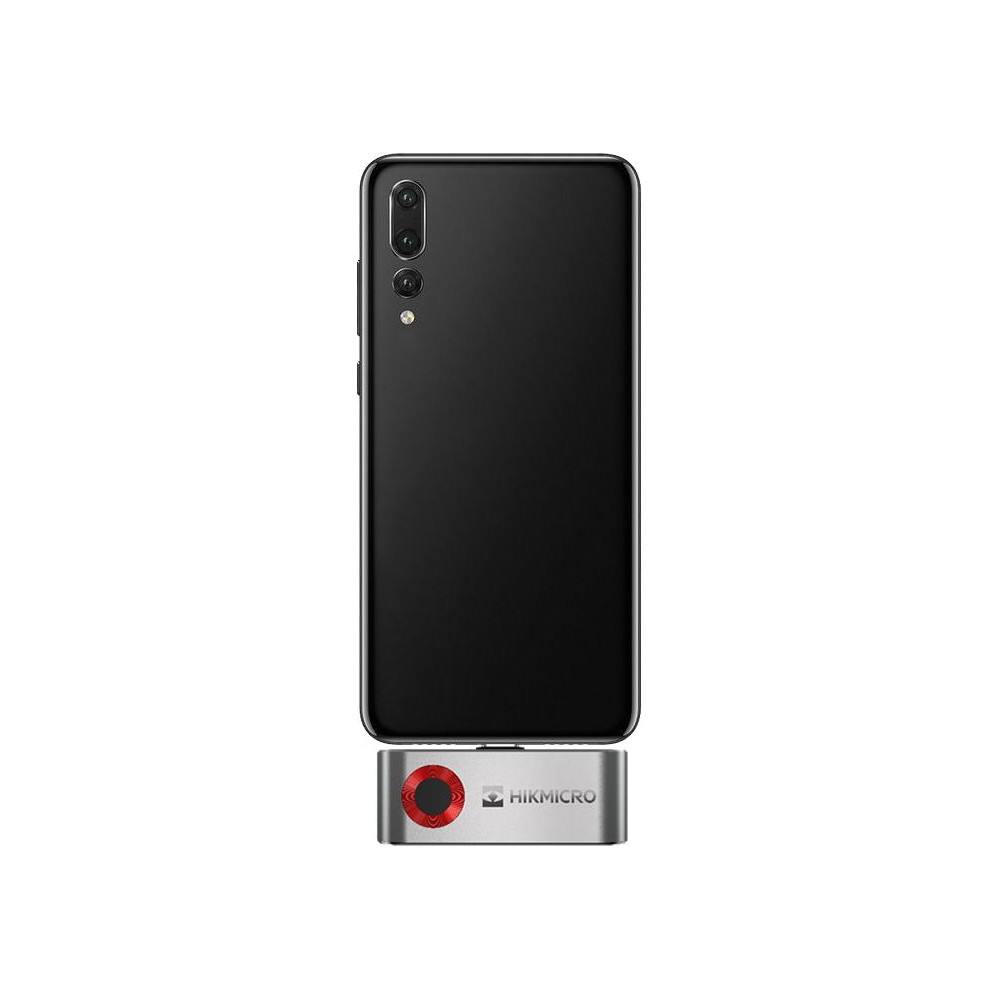

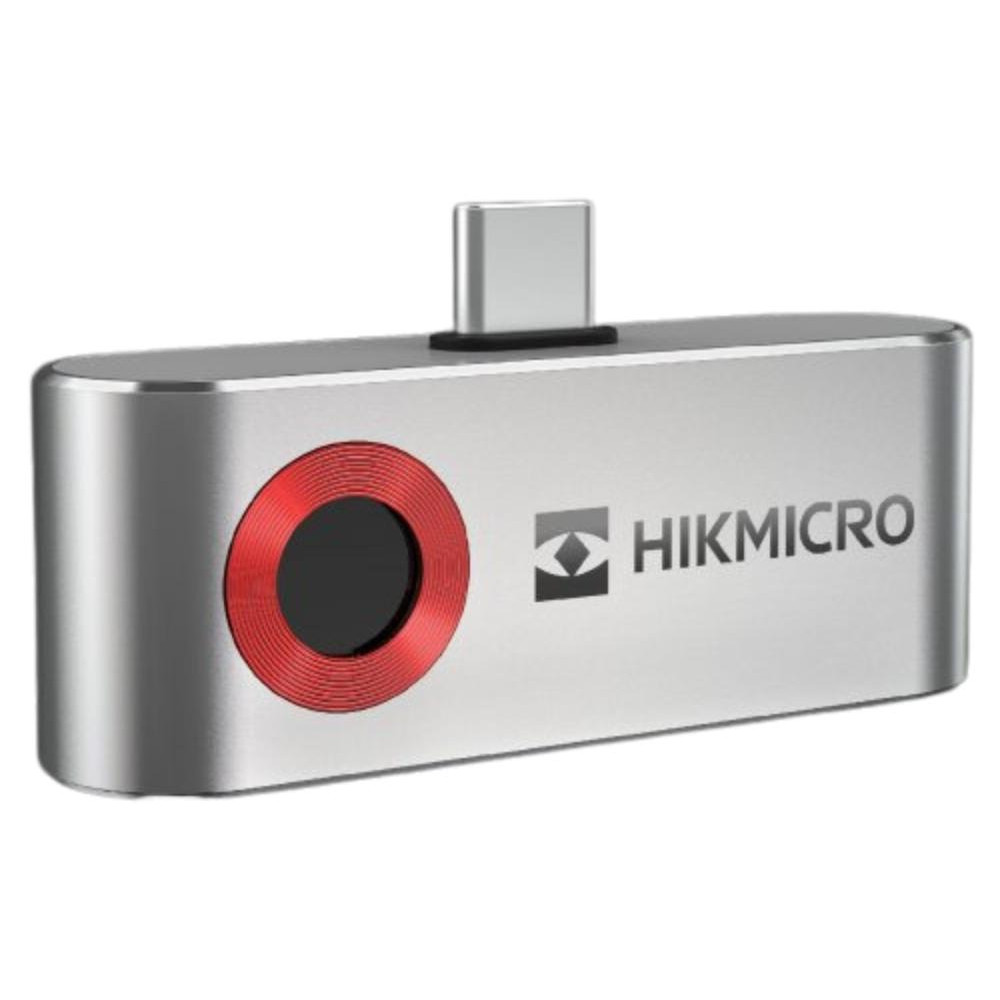

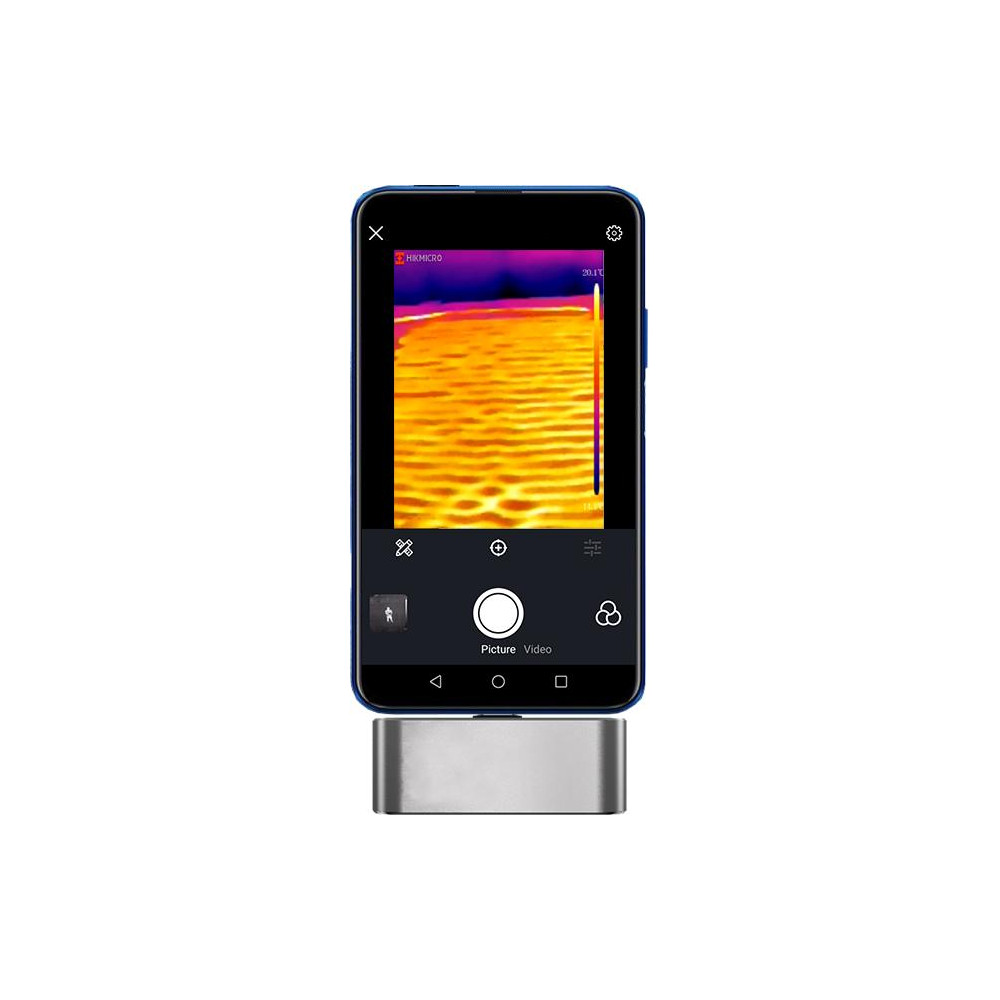

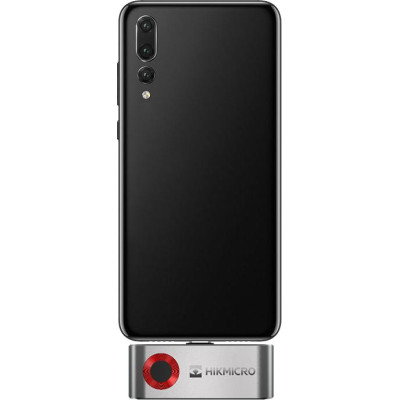

With the HIKMICRO Mini thermal imaging module, you can easily turn your smartphone into a full-fledged thermal imager. It is easy to use thanks to the HIKMICRO Viewer application and connection to a mobile phone with the Android operating system via USB-C. The E20Plus model offers 7 color heat imaging modes and a wide range of image preset options for measurements.
The HIKMCRO Mini thermal imaging module for smartphones allows you to measure skin temperature, inspect electrical equipment, detect air conditioning or heating faults, or find heated objects in the dark. With a temperature measurement range of 5°C to 100°C, it meets most common usage scenarios.
It is mechanically resistant to a fall from a height of one meter and protected by an IP40 protection rating.
We provide a 2-year warranty on the device and a guarantee of renting a replacement device if service is needed.
Specifications:
| Sensor | 160 × 120 px, 17 μm, VOx | |
| Lens | 3.2mm | |
| Spectral range | 8 – 14 µm | |
| Minimum focusing distance | 20cm | |
| Sharpening | Firmly | |
| Field of vision | 50° x 38° | |
| Temperature sensitivity (NETD) | < 40 mK | |
| Video recording | Yes, MP4 | |
| Taking photos | Yes, JPEG | |
| Color palettes | Black Hot / White Hot / Red Hot / Rainbow / Ironbow / Fusion / Rain | |
| Preset for measurement | Hottest Spot, Preset 1 Spot, Preset 1 Area, Off | |
| Shutter | Automatic/Manual | |
| Range of observed temperatures | 5°C to 100°C | |
| Ex.honesty | ± 0.5°C for objects with a temperature from 30°C to 45°C ± 2°C for objects with a temperature of 5°C to 30°C and from 45°C to 100°C (valid 60 seconds after switching on at an ambient temperature between 15°C and 35°C) | |
| Power supply | Powered by mobile phone | |
| Operating system | Android | |
| Working temperature | 15°C to 35°C | |
| Storage temperature | -20°C to 60°C | |
| Degree of protection | IP40 | |
| Dimensions | 54.1mm × 15mm × 27.5mm | |
| Weight | 26 G | |

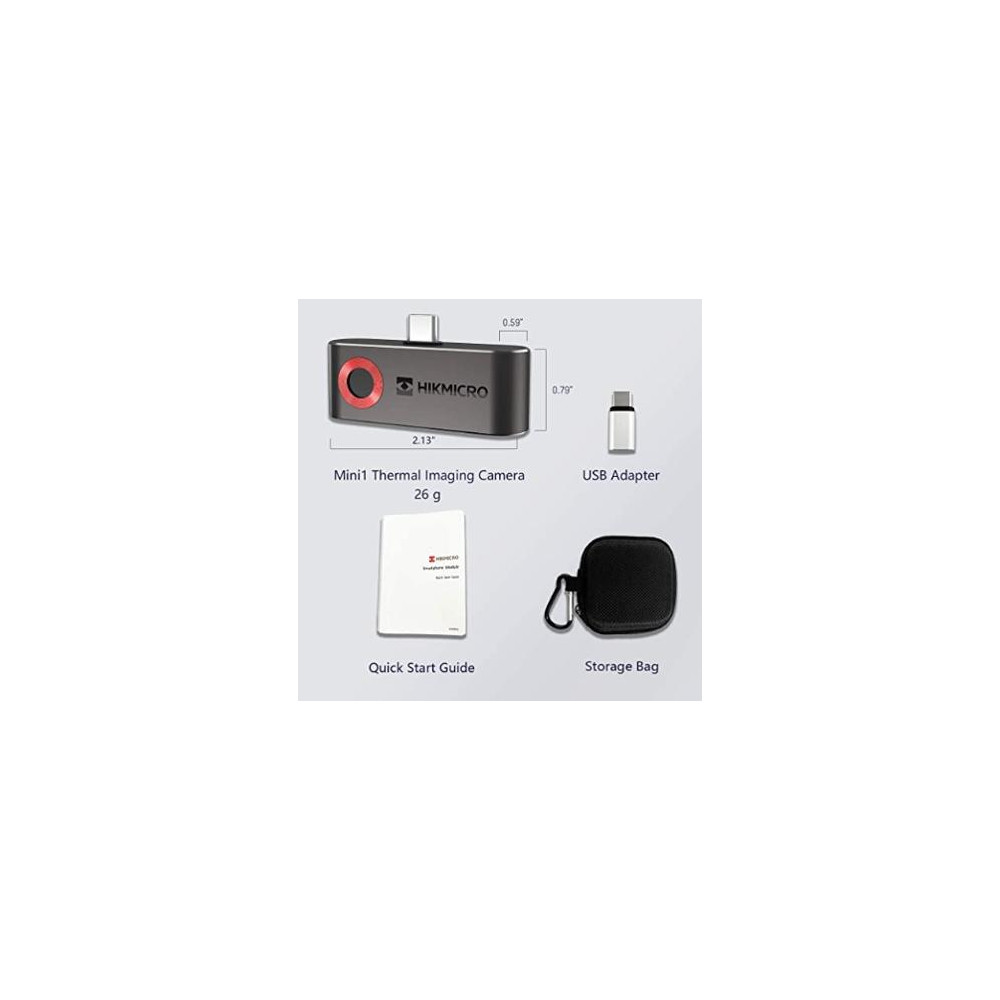

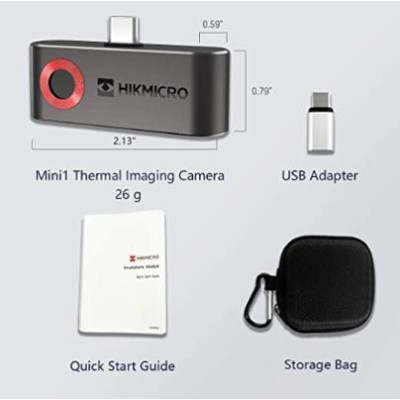

Package contents :
- HIKMICRO Mini thermal imager
- Housing
- USB adapter
- Czech and Slovak instructions for use
700
Parameters
- Sensor
- 160 × 120 px
- Brand
- Hikmicro
- Operating system
- Android
- Thermal sensitivity
- 40 mK
